Rx Clear® Quad Cartridge Filter Tanks

The Rx Clear® 525 Sq Ft Quad Cartridge Filter boast superior filtration using its quad cartridge technology . Made from 100% Reemay, combined with exclusive chain link webbing, filters out debris as small as 2 microns in size. This technology allows fewer particles back into your pool water, saving you time, and money on expensive corrective chemicals.

Features:

• 525 Sq Ft Quad Cartridge Filter Tank
• Superb filtration
• Removes debris as small as 2 microns in size
• 4x the cleaning capacity of most element filters
• Connections built into the tank
• Compatible with single-speed and variable-speed pumps
• HD-4 all resin tank won't corrode
• Easy rinse cleaning
• Flow Rate 150 GPM
• Turnover rate (6 hrs) 54,000 gallons
• Turnover rate (8 hrs) 72,000 gallons
• 2" Plumbing
• 24" min. foot print

Benefits:

• Debris Removal: Unlike sand filters, this cartridge filter removes debris as small as 2 microns in size.
• Flow Control: With a strong flow control core, the evenly spaced openings allow for maximum water flow.
• Pleat Support: Exterior pleat support banding prevents pleat bunching to optimize water flow and prevent cartridge clogging.

Includes:

• Pressure gauge
• Air relief assembly
• Clamp system (clamp, clamp nut and bolt)
• Top and Bottom manifold

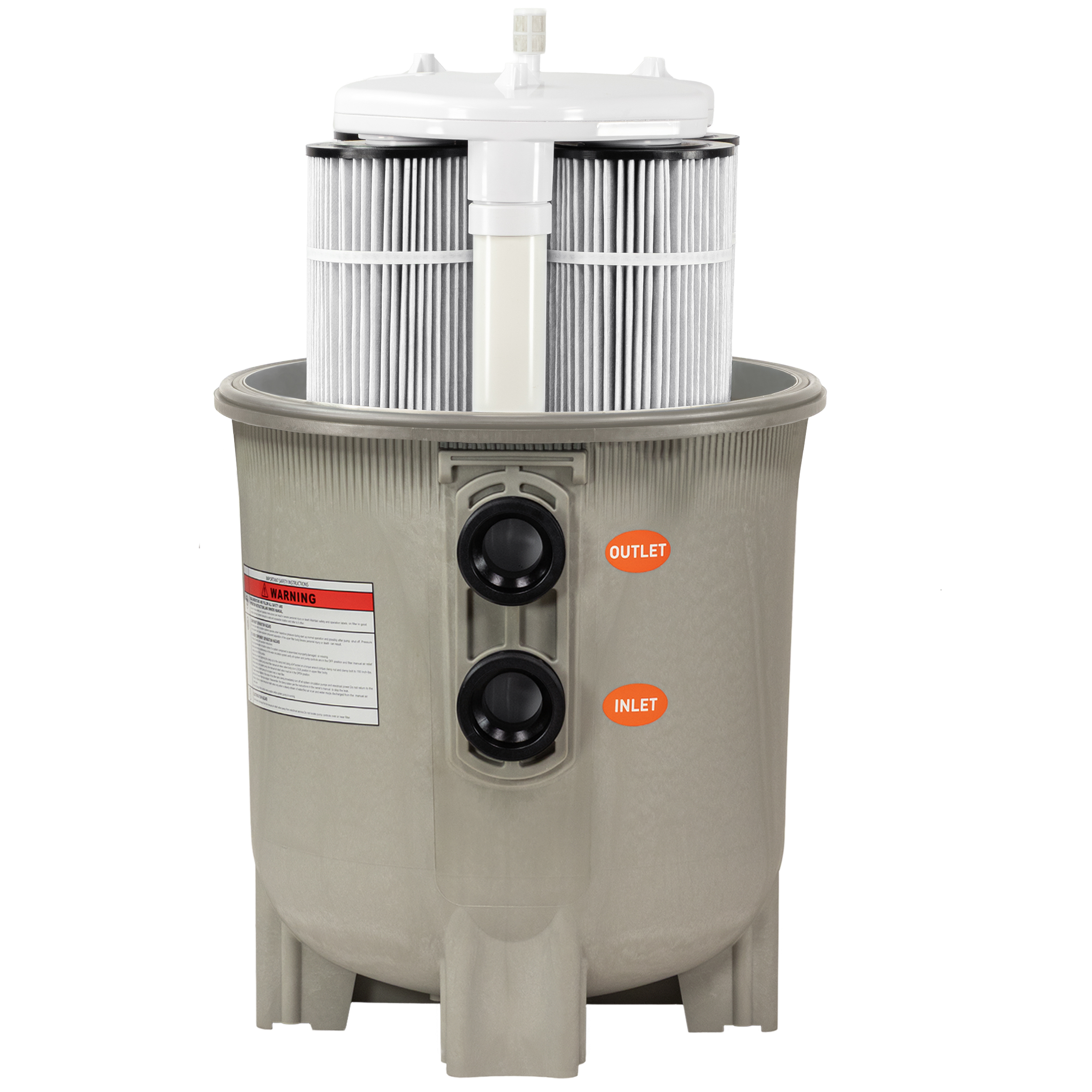

• 4 Cartridge elements

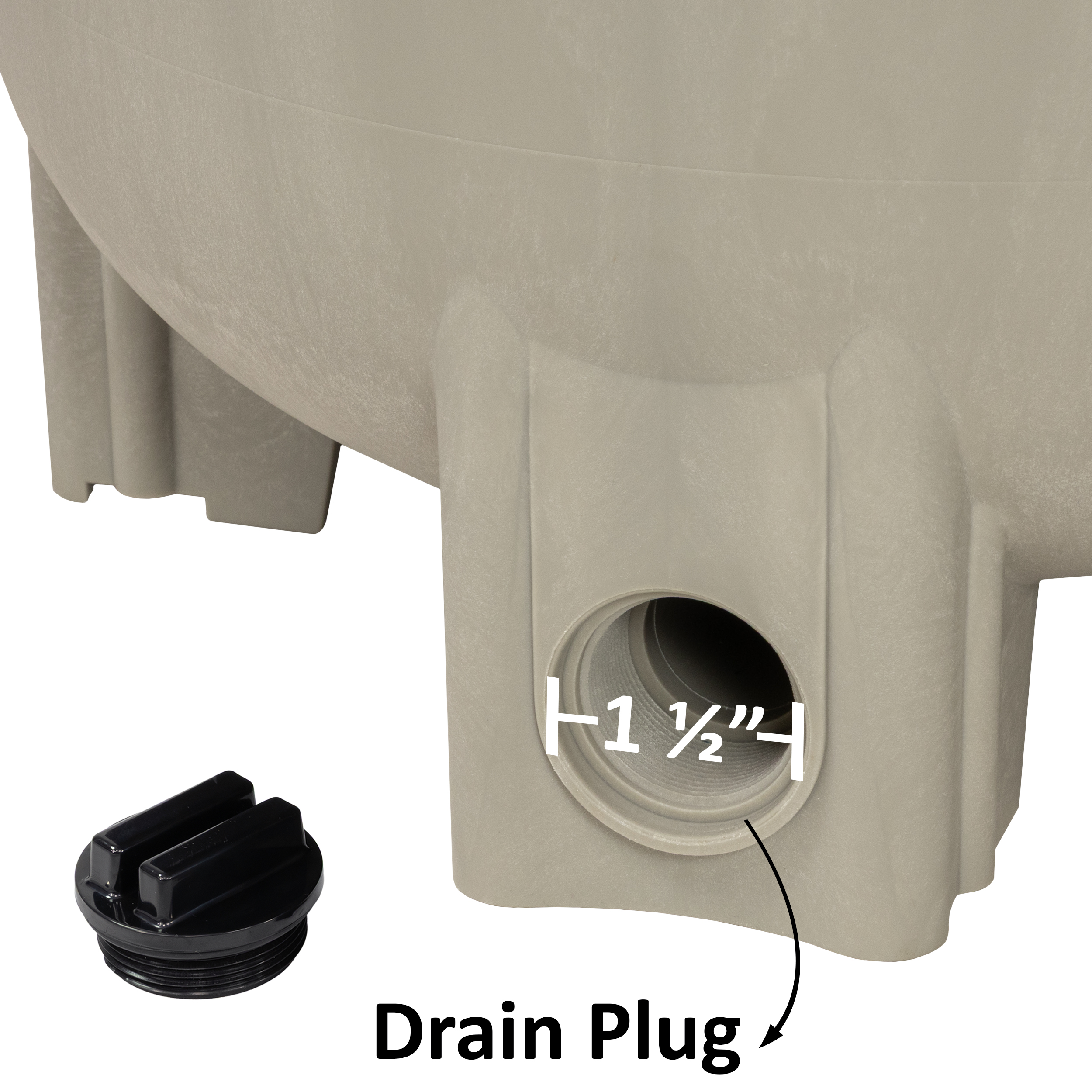

• 1 1/2" drain plug

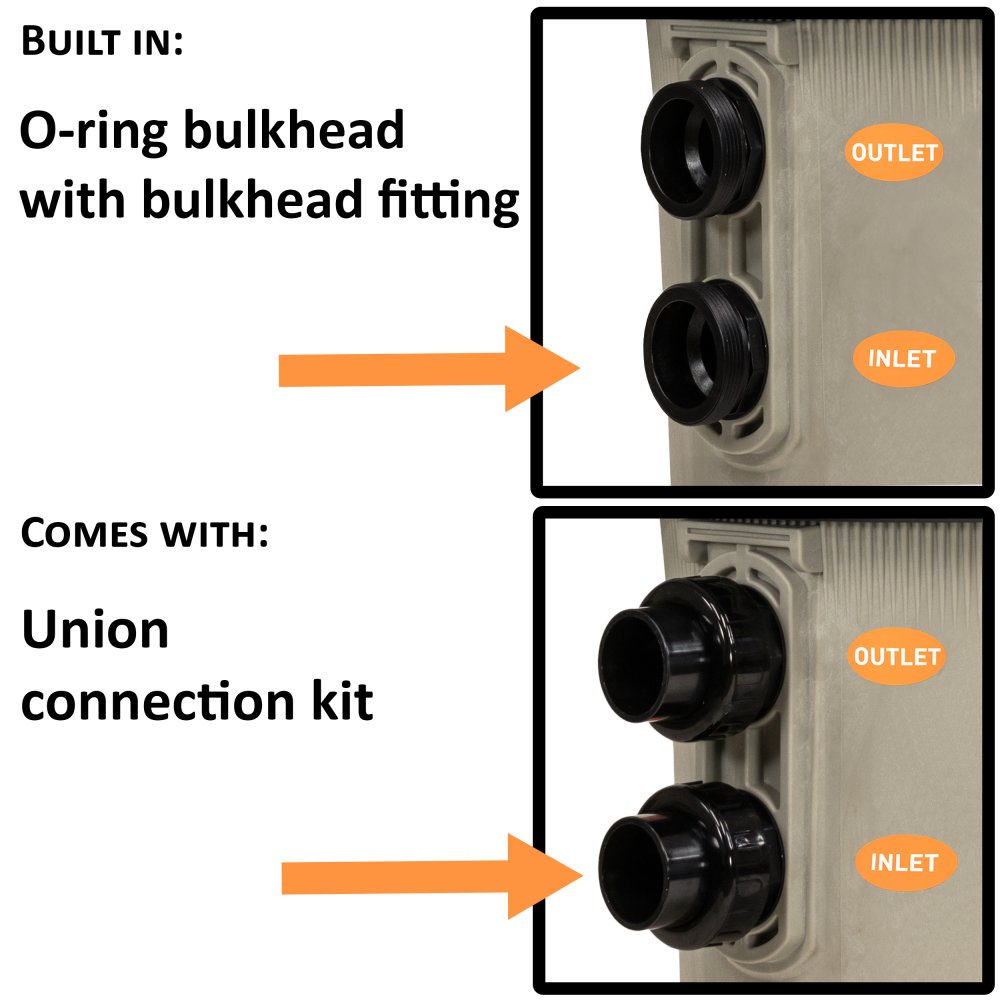

• O-ring bulkhead and bulkhead fitting
• Union connection kit

Warranty:

• 1 Year Limited Warranty

*Color of Cartridges May Vary*
